CQ350B22HE
Axial Fan CQ350B22HE
AC 220 V · 260.0 W rated power · 2100 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 2100 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50 Hz-400 Hz
- Operating voltage
- AC 150 V-265 V
- Rated power
- 260.0 (Max: 400.0) W
- Rated speed
- 2100 rpm ±10%
- Maximum airflow
- 2150.5 CFM ±10%
- Noise level
- 67.0 (Max: 69.3) dBA

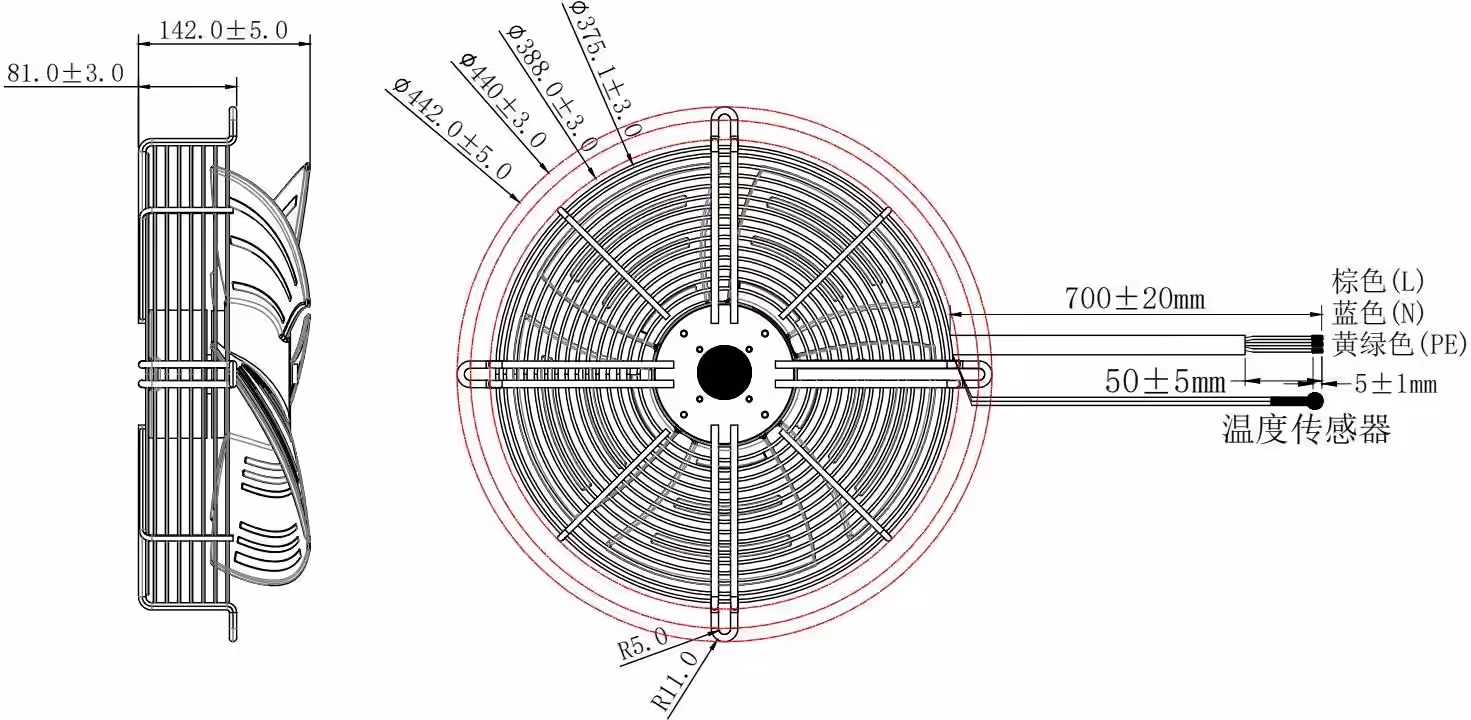

Dimensional drawing
