CQ133B22HE
Centrifugal Fan CQ133B22HE
AC 220 V · 30.0 W rated power · 4200 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 4200 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–265 V
- Starting voltage
- ≥85 VAC
- Rated power
- 30.0 W (Max: 50.0 W)
- Certification power (datasheet)
- 60.0 W
- Rated speed
- 4200 rpm ±10%
- Maximum airflow
- 227.68 CFM ±10%
- Noise level
- 63.5 (Max: 66.5) dBA

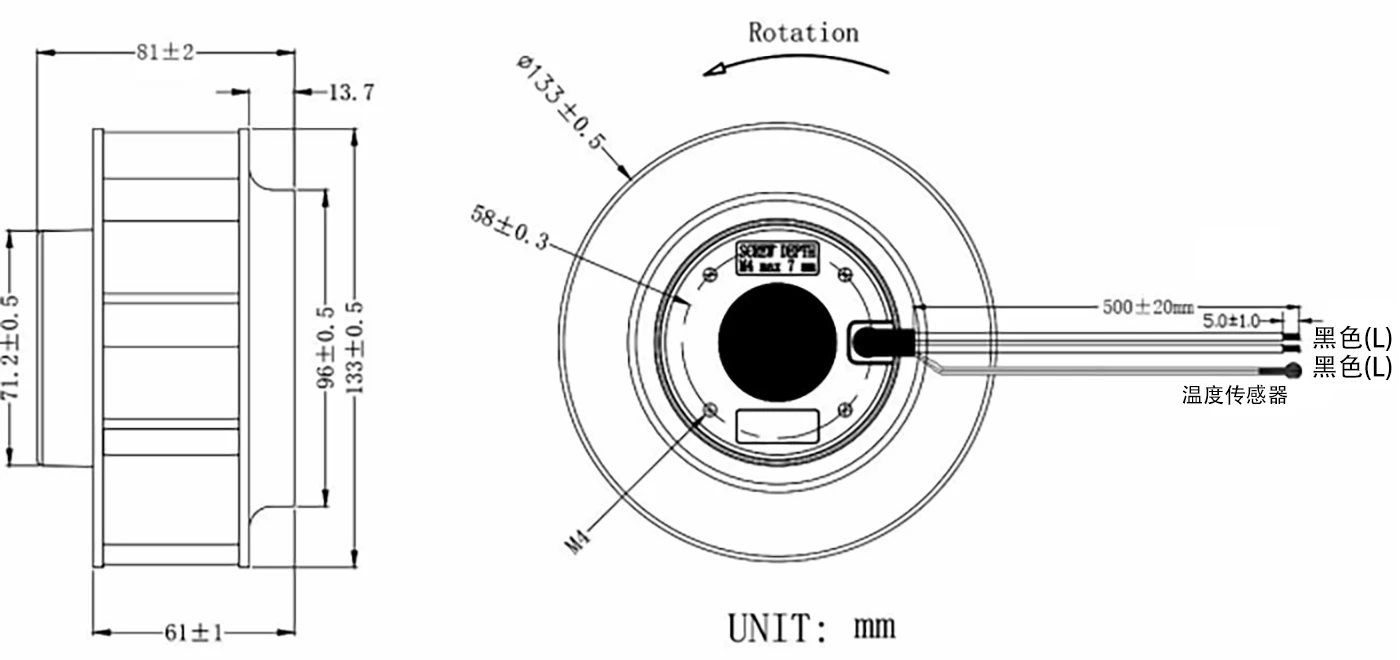

Dimensional drawing
