CQ250B22ME
Centrifugal Fan CQ250B22ME
AC 220 V · 80.0 W rated power · 2500 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 2500 rpm rated speed, ±10% tolerance
Specifications
- Dimensions
- 250 × 250 × 99 mm
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–265 V
- Starting voltage
- ≥85 VAC
- Rated power
- 80.0 W (Max: 130.0 W)
- Rated speed
- 2500 rpm ±10%
- Maximum airflow
- 801.7 (Min: 723.7) CFM
- Noise level
- 67.0 (Max: 69.8) dBA

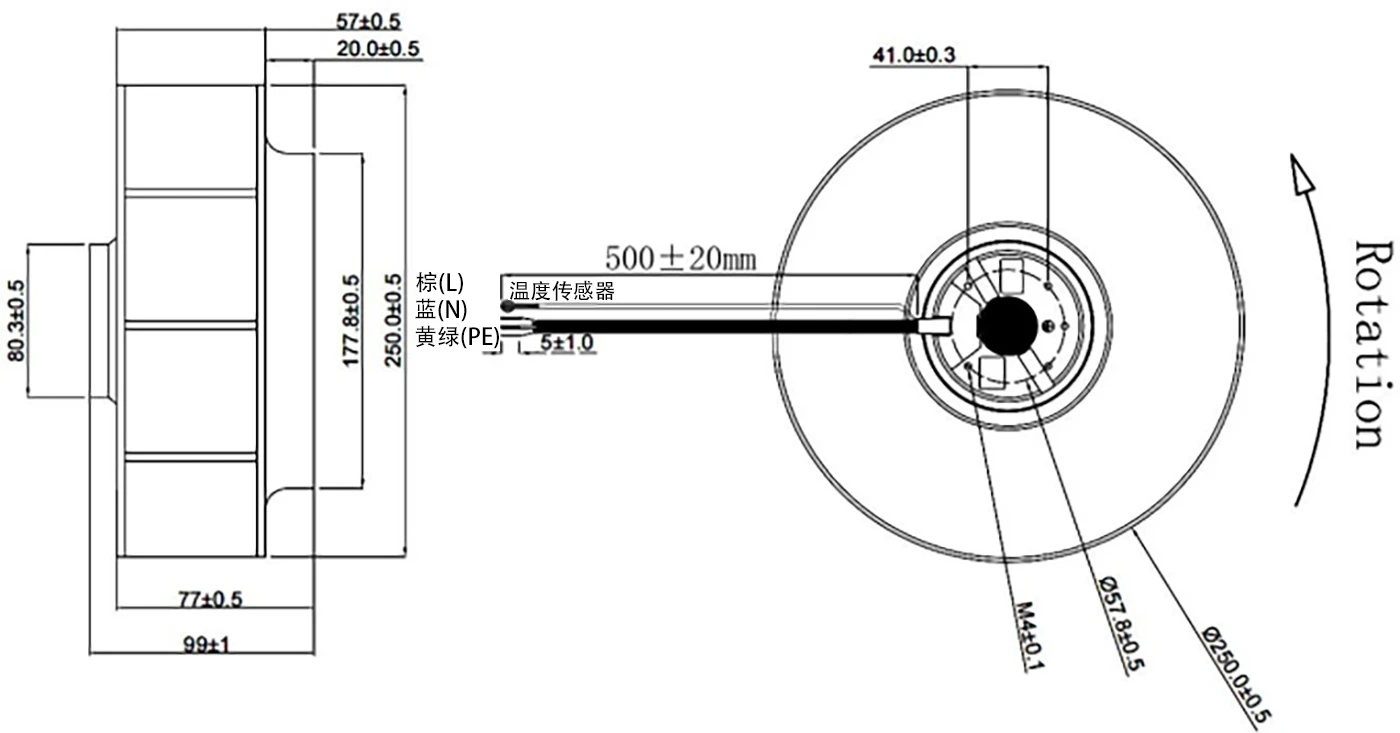

Dimensional drawing
