CQ318B22HE
Centrifugal Fan CQ318B22HE
AC 220 V · 135.0 W rated power · 1530 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 1530 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50 Hz-400 Hz
- Operating voltage
- AC 150 V-265 V
- Starting voltage
- ≥150 V
- Rated power
- 135.0 W (Max: 188.0 W)
- Rated speed
- 1530 rpm ±10%
- Maximum airflow
- 1133.7 (Min: 1026.3) CFM
- Noise level
- 66.0 (Max: 68.0) dBA

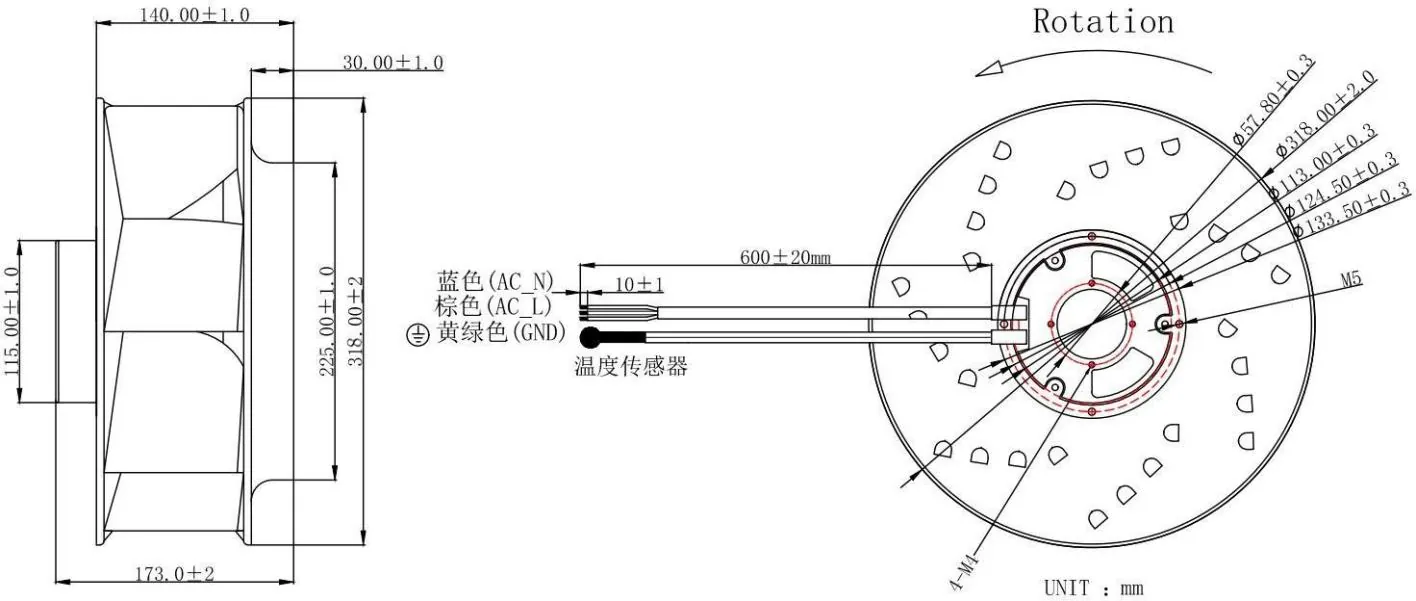

Dimensional drawing
