CQ360B22HE
Centrifugal Fan CQ360B22HE
AC 220 V · 230.0 W rated power · 2000 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 2000 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- 110 V-265 V
- Rated power
- 230.0 (Max: 400.0) W
- Certification power (datasheet)
- 400 W
- Rated speed
- 2000 rpm ±10%
- Maximum airflow
- 2030.2 CFM ±10%
- Noise level
- 73.6 (Max: 77.0) dBA

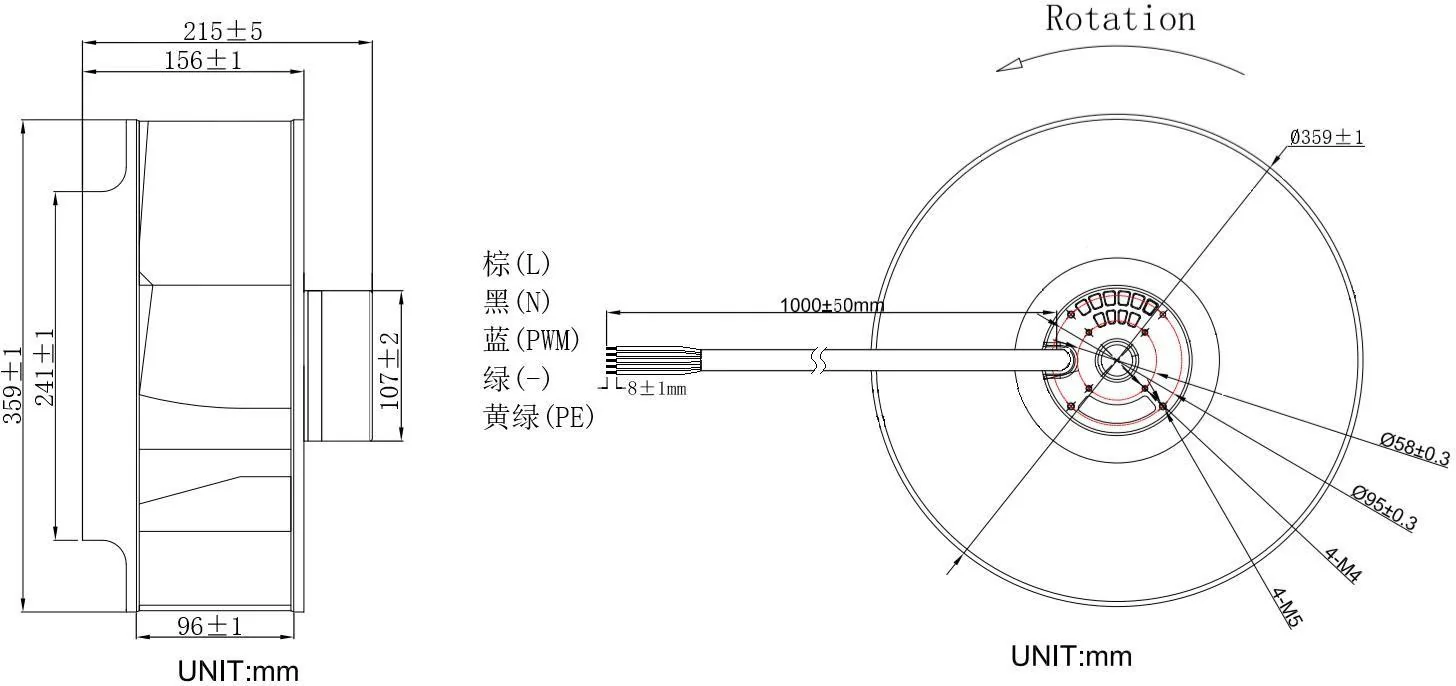

Dimensional drawing
