CQ17251B22HE
Cooling Fan CQ17251B22HE
AC 220 V · 42.0 W rated power · 5100 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 5100 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Voltage range (confirm before selection)
- AC 85–265 V
- Rated power
- 42.0 (Max: 50.0) W
- Certification power (datasheet)
- 70 W
- Rated speed
- 5100 rpm ±10%
- Maximum airflow
- 425.5 CFM ±10%
- Noise level
- 65.0 (Max: 68.0) dBA
The source lists both a single voltage and a voltage range as rated voltage. Please confirm the operating range before selection.

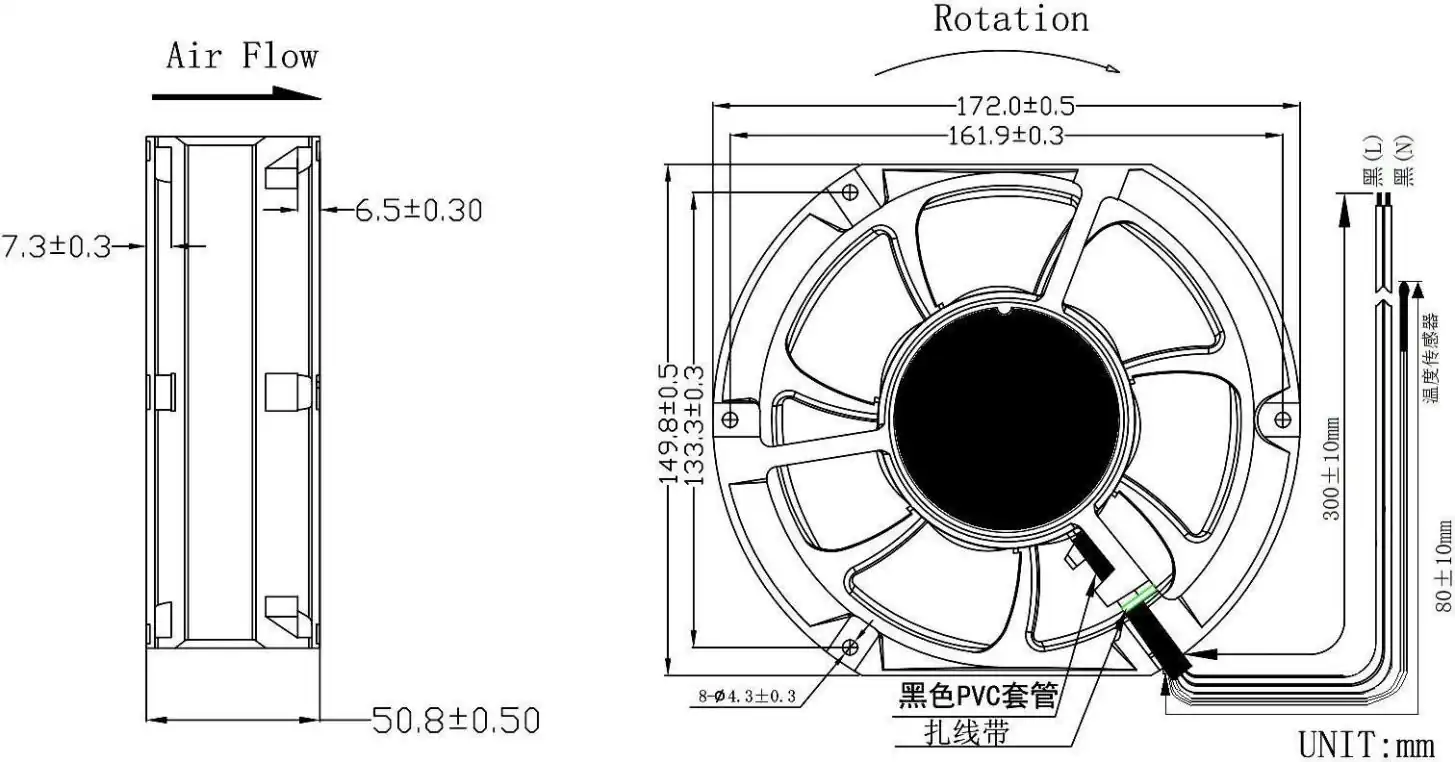

Dimensional drawing
