CQ18060B22HE
Cooling Fan CQ18060B22HE
AC 220 V · 45.0 W rated power · 3700 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 3700 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–265 V
- Starting voltage
- ≥85 V
- Rated power
- 45.0 (Max: 60.0) W
- Rated speed
- 3700 rpm ±10%
- Maximum airflow
- 502.5 CFM ±10%
- Noise level
- 63.5 (Max: 65.5) dBA

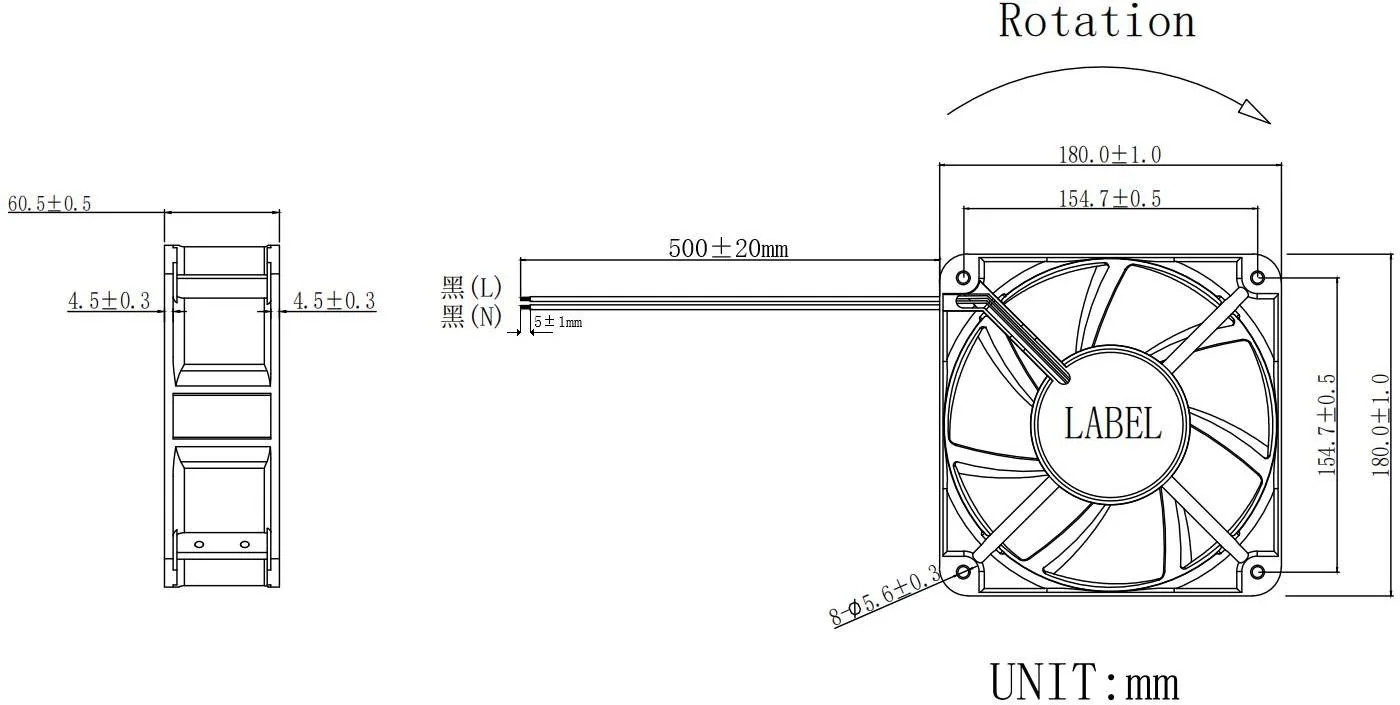

Dimensional drawing
