CQ20053B22HE
Cooling Fan CQ20053B22HE
AC 220 V · 80.0 W rated power · 4300 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 4300 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 110–265 V
- Rated power
- 80.0 (Max: 110.0) W
- Rated speed
- 4300 rpm ±10%
- Maximum airflow
- 802.5 CFM ±10%
- Noise level
- 69.8 (Max: 72.3) dBA

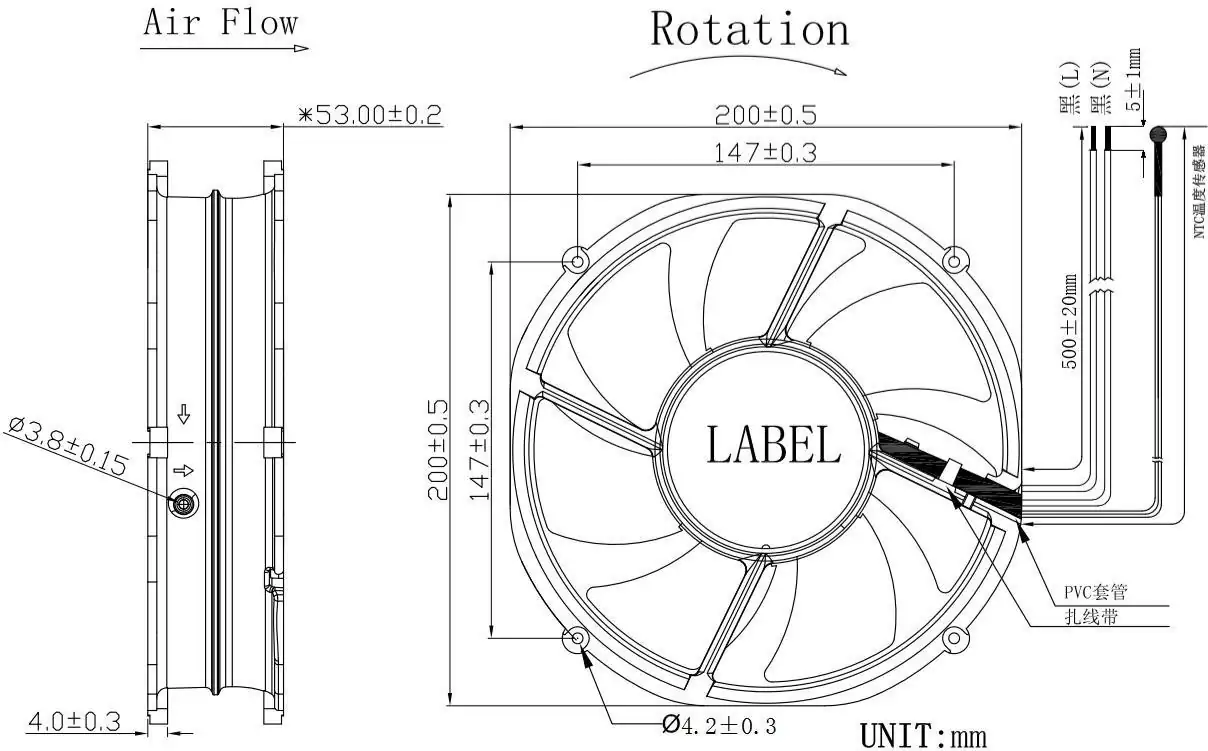

Dimensional drawing
