CQ20060B22HE
Cooling Fan CQ20060B22HE
AC 220 V · 31.0 W rated power · 2600 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 2600 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–265 V
- Starting voltage
- ≥85 VAC
- Rated power
- 31.0 (Max: 45.0) W
- Rated speed
- 2600 rpm ±10%
- Maximum airflow
- 533.3 (Min: 479.97) CFM
- Noise level
- 57.0 (Max: 59.0) dBA

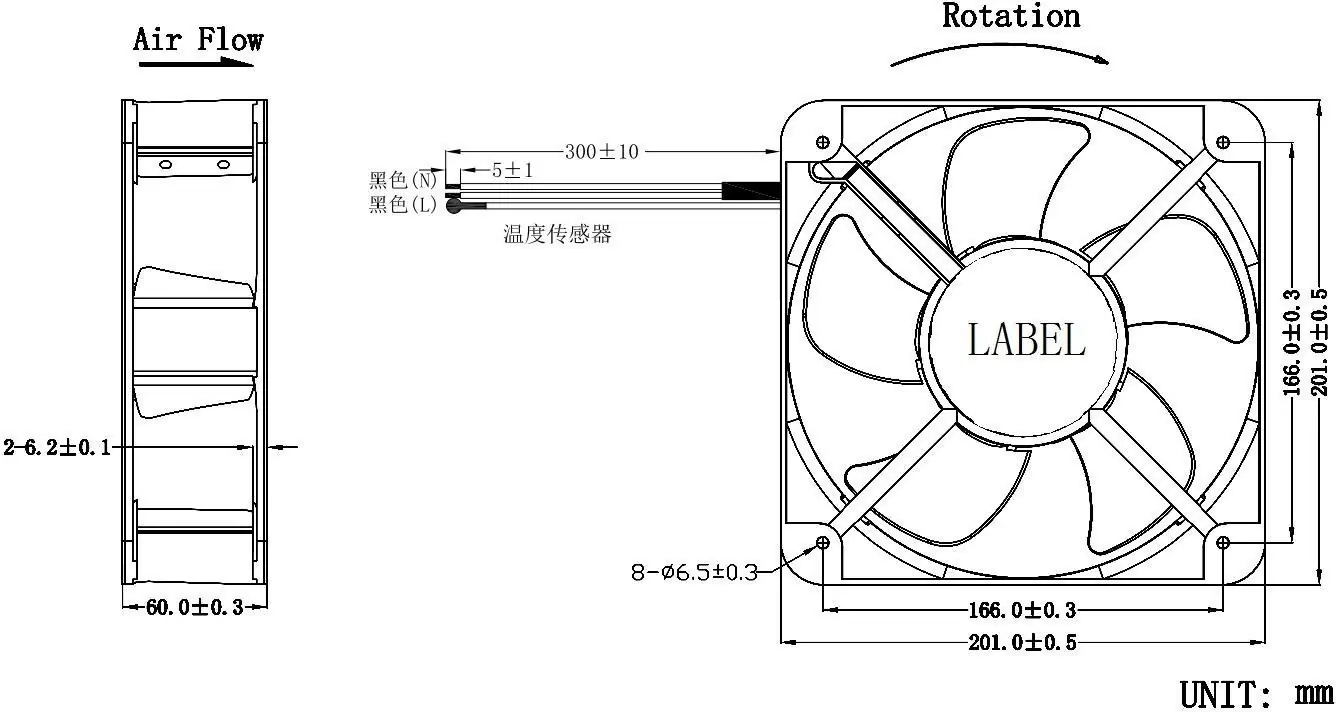

Dimensional drawing
