CQ20572B22H
Cooling Fan CQ20572B22H
AC 220 V · 110.0 W rated power · 3500 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 3500 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 150–240 V
- Starting voltage
- ≥150 VAC
- Rated power
- 110.0 (Max: 138.0) W
- Certification power (datasheet)
- 160.0 W
- Rated speed
- 3500 rpm ±10%
- Maximum airflow
- 927.3 (Min: 837.5) CFM
- Noise level
- 65.0 (Max: 68.0) dBA

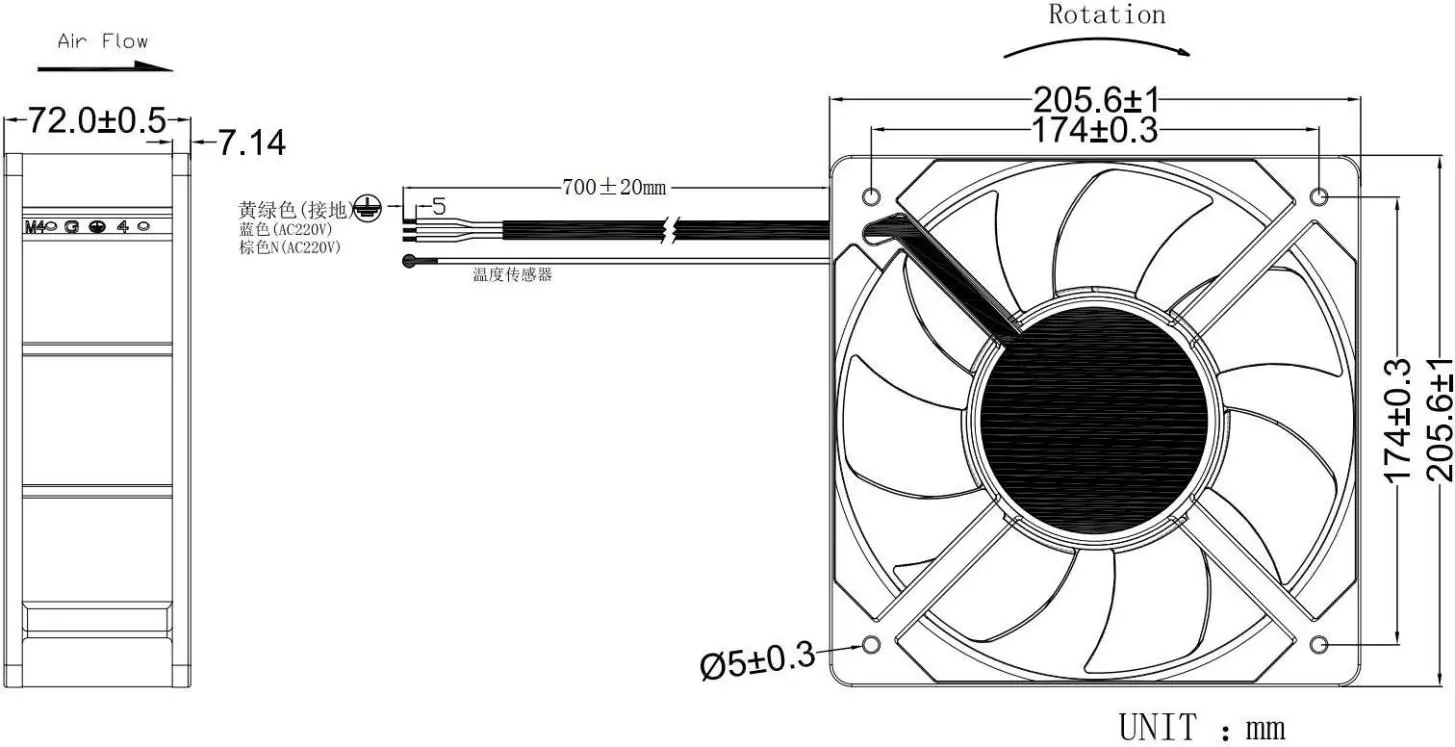

Dimensional drawing
