CQ22580B22HE
Cooling Fan CQ22580B22HE
AC 220 V · 45.0 W rated power · 2500 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 2500 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–265 V
- Starting voltage
- ≥85 VAC
- Rated power
- 45.0 (Max: 60.0) W
- Rated speed
- 2500 rpm ±10%
- Maximum airflow
- To be confirmed
The airflow value in the source has ambiguous spacing. Please confirm the airflow specification before selection.

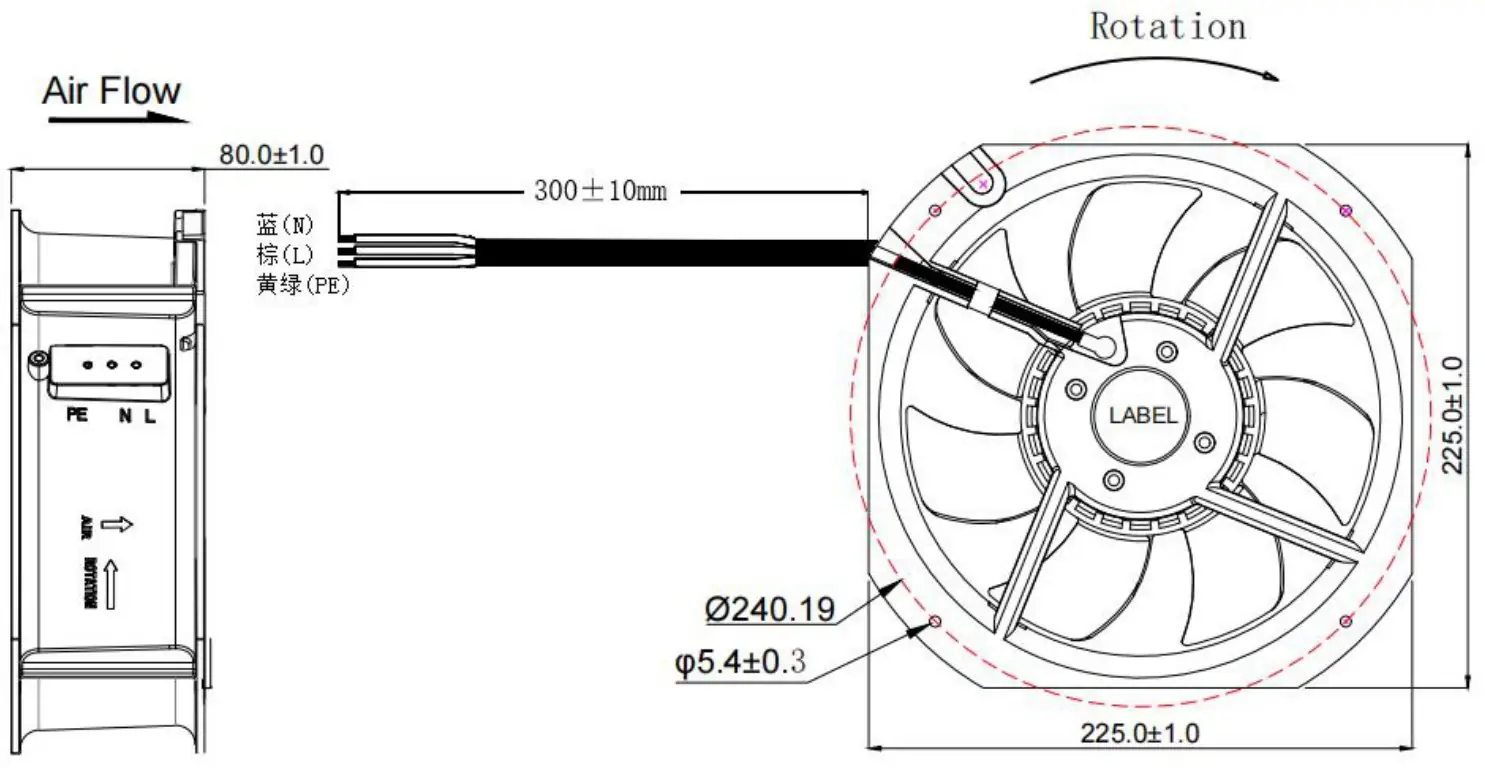

Dimensional drawing
