CQ28080B22HE
Cooling Fan CQ28080B22HE
AC 220 V · 120.0 W rated power · 3000 rpm rated speed.
Highlights
- AC 220 V rated voltage
- Dual ball bearing construction
- 3000 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- AC 220 V
- Frequency
- 50–400 Hz
- Operating voltage
- AC 85–260 V
- Starting voltage
- ≥85 VAC
- Rated power
- 120.0 (Max: 150.0) W
- Rated speed
- 3000 rpm ±10%
- Maximum airflow
- 1240.5 (Min: 1153.7) CFM
- Noise level
- 68.0 (Max: 70.0) dBA

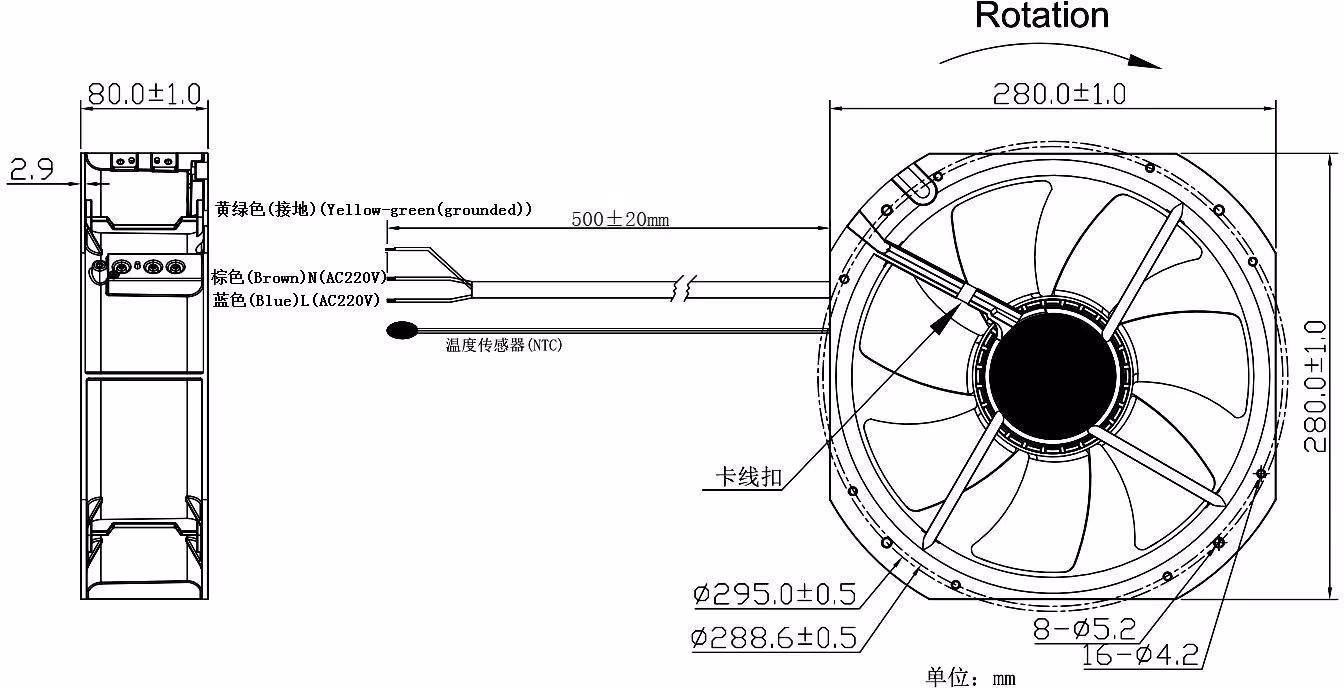

Dimensional drawing
