SZ12032BHD2
Cooling Fan SZ12032BHD2
DC 24 V · 19.2 W rated power · 3500 rpm rated speed.
Highlights
- DC 24 V rated voltage
- Ball bearing construction
- 3500 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Ball bearing
- Operating voltage
- DC 14–27 V
- Rated voltage
- DC 24 V
- Starting voltage
- Min: DC 14 V
- Rated current
- 0.8 A (Max: 0.9 A)
- Rated speed
- 3500 rpm ±10%
- Rated power
- 19.2 W (Max: 22 W)
- Maximum airflow
- 157.3 CFM
- Noise level
- Max: 56.9 dBA

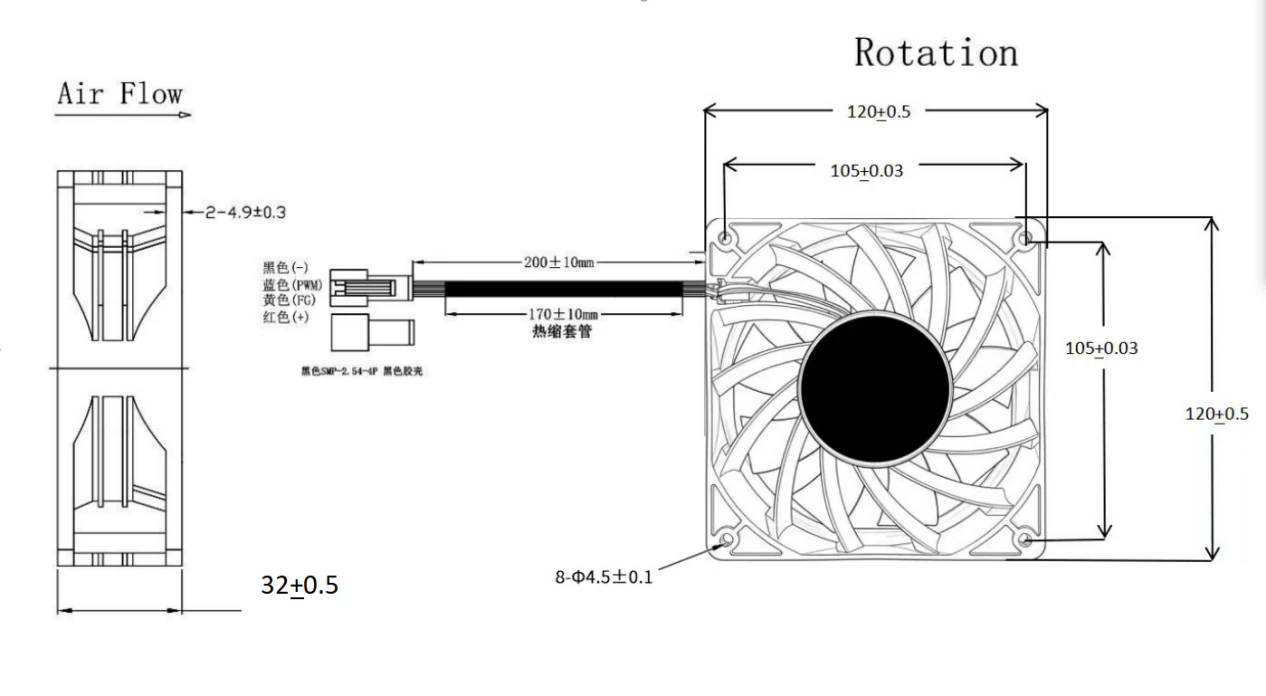

Dimensional drawing
