SZ12038BHD2
Cooling Fan SZ12038BHD2
DC 24 V · 15.6 W rated power · 4300 rpm rated speed.
Highlights
- DC 24 V rated voltage
- Dual ball bearing construction
- 4300 rpm rated speed, ±10% tolerance
Specifications
- Bearing type
- Dual ball bearings
- Rated voltage
- DC 24 V
- Voltage range (confirm before selection)
- DC 15–27 V
- Rated power
- 15.6 (Max: 18.0) W
- Rated speed
- 4300 rpm ±10%
- Maximum airflow
- 182.5 (Min: 171.3) CFM
- Noise level
- To be confirmed
The source lists both a single voltage and a voltage range as rated voltage. Please confirm the operating range before selection.
The source contains two noise ratings without test conditions. Contact us to confirm the applicable noise specification.

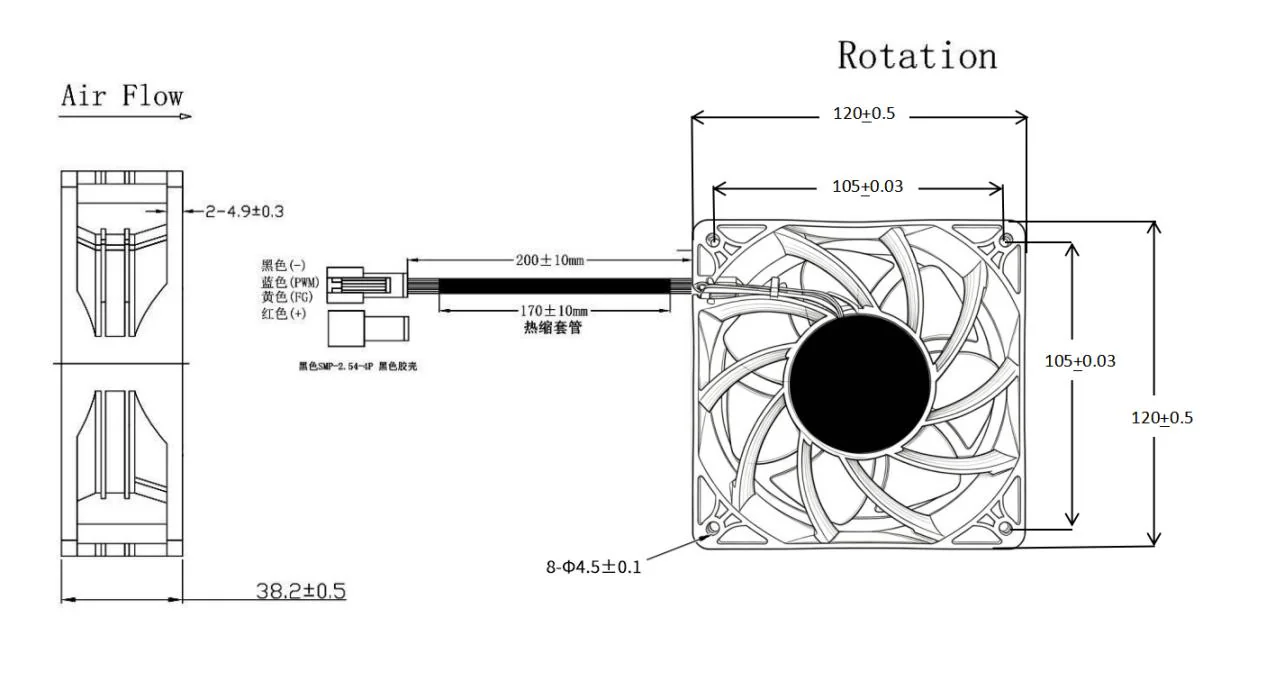

Dimensional drawing
